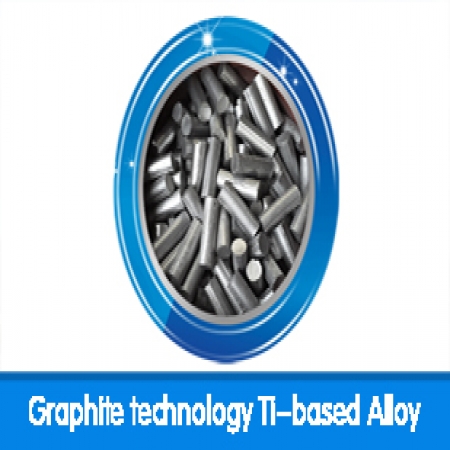

Graphite technology Ti-based Alloy Wear Resistant Composites

Graphene Ti-based alloy wear-resistant composites, the successful use of graphene activated wet strengthening technology to improve the hardness at the same time greatly improve the bending strength, to solve the hardness and strength of the material contradictory problems. The material is cast in the crusher hammer, plate hammer, jaw plate, broken wall, mortar wall, broken roller and other wear-resistant castings, a substantial increase in service life, the technology in the world’s leading level!

Description

Hunan WISE New Material Technology Co.,Ltd.



Graphene Ti-based alloy wear-resistant composites,  the successful use of graphene activated moistening technology, in the field of materials to obtain a major breakthrough to improve the hardness at the same time greatly improve the bending strength, access to a high hardness and high strength titanium alloy composite material (in the field of materials, the higher the hardness, the lower the strength will solve the problem of hardness and strength of the material contradictory.), The material used in the crusher hammer, plate hammer, jaw plate, broken wall, Mortar wall, broken roller and other wear-resistant castings, effectively reducing the wear of high manganese steel matrix, the use of domestic and foreign customers feedback, a substantial increase in the wear resistance of wear-resistant castings, so that working life can be improved at least 2- More than 5 times, and greatly improve the efficiency of crushing, crushing equipment, maintenance costs and replacement costs significantly reduced, the technology is at a leading global level.

Hunan WISE New Material Technology Co.,Ltd.

Saving lots cost for customer

A large number of cost savings for customers, has been recognized by the majority of customers at home

and abroad trust. In a cement group broken limestone, set a long record of up to 20 months, shredding material of 3.78 million tons,

and wear parts of the alloy is still clearly .We have to calculate an account: a hammer crusher using high manganese steel hammer

15 days to replace once, 24 times a year, each set of 280 kg, 6.72 tons per year, 9000 yuan per ton, the annual consumption of 60,400 yuan;

And the use of Langfeng materials produced wear-resistant castings for wear-resistant materials - graphene technology titanium-based

alloy wear-resistant composite materials, cast in the high manganese steel hammer, casting out the alloy hammer, only need to

replace 5 times a year , 1.4 tons per year, 18,000 yuan per ton, the annual cost of 25,200 yuan, 35.2 million yuan for enterprises to save each year.

If there are three crushers, can save 10.584 million yuan each year. Application

Graphite Ti-based alloy wear-resistant composites can be machined, castable, arc welding, heat treatment performance, product toughness,

non-magnetic, with high hardness, high strength, high wear resistance, high degree of hard work, High rigidity, impact resistance,

elastic modulus, with good linear expansion coefficient and impact value, with high damping characteristics and inherent frequency characteristics.

Hunan WISE New Material Technology Co.,Ltd.





Hunan WISE New Material Technology Co.,Ltd.

Hunan WISE New Material Technology Co.,Ltd.





Hunan WISE New Material Technology Co.,Ltd.

End customers use the site

Hunan WISE New Material Technology Co.,Ltd.



Hunan WISE New Material Technology Co.,Ltd.

Hunan WISE New Material Technology Co.,Ltd.

Hunan WISE New Material Technology Co.,Ltd.

Specification

Technical Parameters



20-200℃ Linear expansion coefficient11.1-12.1  x10-6/℃

Coercive force: no magnetic

20-700℃ Linear expansion coefficient:

14.3-15.3  x10-6/℃



Coercive force: no magnetic



20-200℃ Linear expansion coefficient11.1-12.1  x10-6/℃

Coercive force: no magnetic

20-700℃ Linear expansion coefficient:

14.3-15.3  x10-6/℃


Impact value:8.0-10.0J/m2

Elastic Modulus:340-350  x103N/m m2

Hardness:60-65HRC

Specific resistance:0.9-0.95 Ωm m2 /m

Density:6.0-6.2g/m3

Bending strength:1800-2000MPa

porosity≤A02B00

Product specification:

D12 x 50 mm     D12 x 80 mm    D14 x 60 mm    D14 x 90 mm

D16 x 60 mm     D16 x 80 mm    D18 x 60 mm    D18 x 90 mm

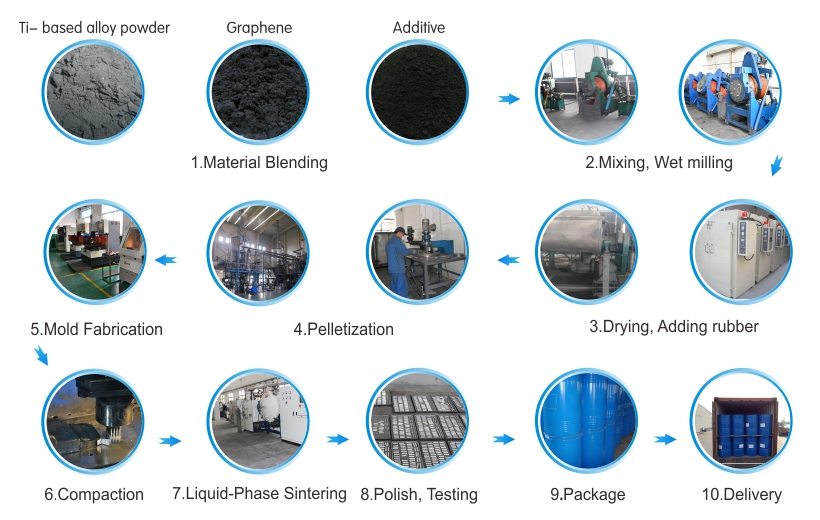

Production process

Hunan WISE New Material Technology Co.,Ltd.

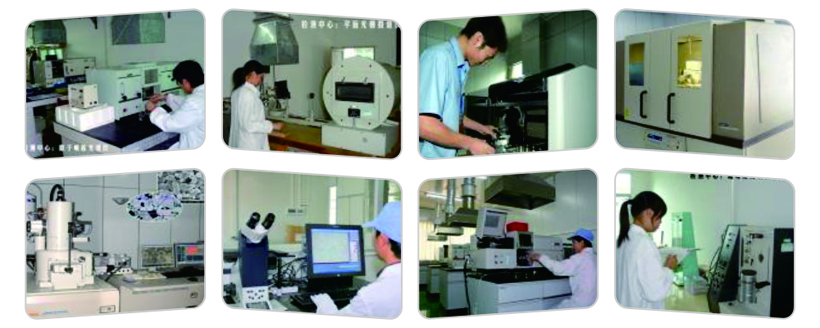

Product testing

Hunan WISE New Material Technology Co.,Ltd.

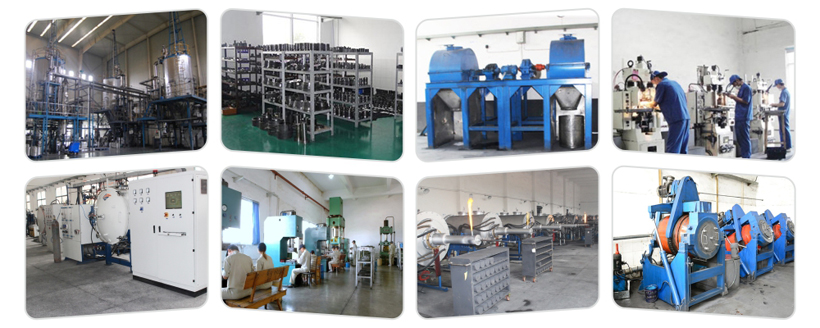

Production site

Hunan WISE New Material Technology Co.,Ltd.
