non magnetic tic hard alloy material, tic high wear resistant steel bonded hard alloy, TM52X steel bonded titanium carbide rod, fero-tic inserts

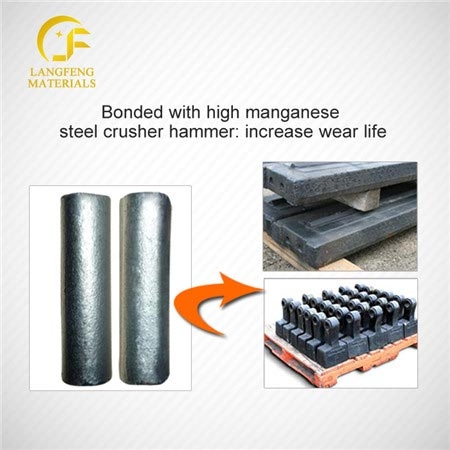

TM52X Steel Bonded Titanium Carbide Rod, which contains 47-50wt% of a hard phase TiC and 37-40 wt% of a bonding phase high manganese steel, where in the bonding phase contains, by weight, 2.0-4.0% of Ni, 10.0-12.0% of Mn, and the balance elements. The TM52X steel bonded titanium carbide rod is mainly prepared by the following steps of: proportioning, compaction, sintering. The non magnetic titanium alloy material has advantages of uniform austenite microstructure, high wear resistance, good strength and good pourability. TM52X steel bonded titanium carbide rod is widely used in mining industry, especially on high manganese steel crusher hammer.
Product application:
Titanium carbide alloy sintered product metallography:
Post-wear metallography of titanium carbide:
Product using method:
Product packing:
PHYSICAL:
|
Grade |
TRS (ISO3327) |
Hardness (ISO3878) |
Density (ISO3369) |
Average Grain Size |
Porosities |
|
TM52X |
1600-2000 |
82-83HRA |
6.0-6.3g/cm3 |
2.0 um |
A02B00C00 |
|
TM50X |
1600-2000 |
85-86HRA |
6.0-6.3g/cm3 |
2.0 um |
A02B00C00 |
|
TM48X |
1500-1800 |
88-90HRA |
5.9-6.2g/cm3 |
2.0 um |
A02B00C00 |
CHEMICAL:
|
Grade |
TiC(%) |
Fe+Mn(%) |
Ni+Mo(%) |
Zr+Nb(%) |
Other(%) |
|
TM52X |
46-48 |
46-48 |
2-4 |
1-2 |
2-5 |
|
TM50X |
47-49 |
45-47 |
2-4 |
2-4 |
2-5 |
|
TM48X |
48-50 |
44-46 |
2-4 |
3-5 |
2-5 |
