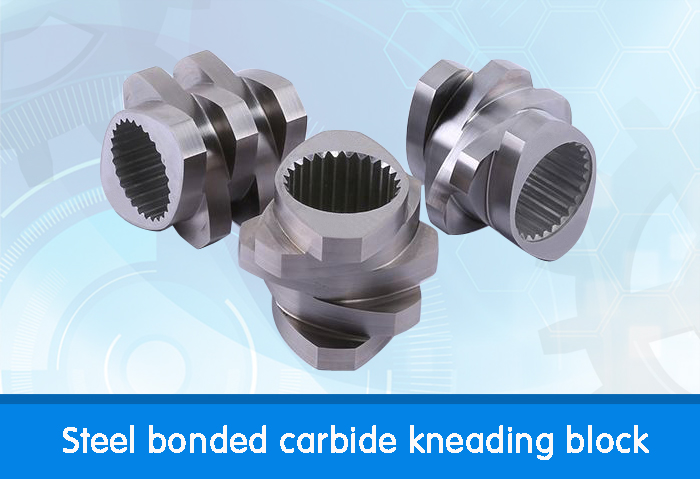

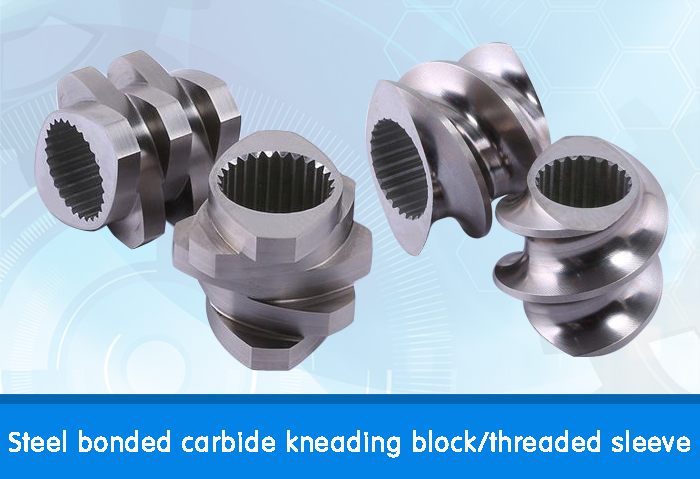

Steel bonded carbide kneading block/threaded sleeve

Product Introduction:

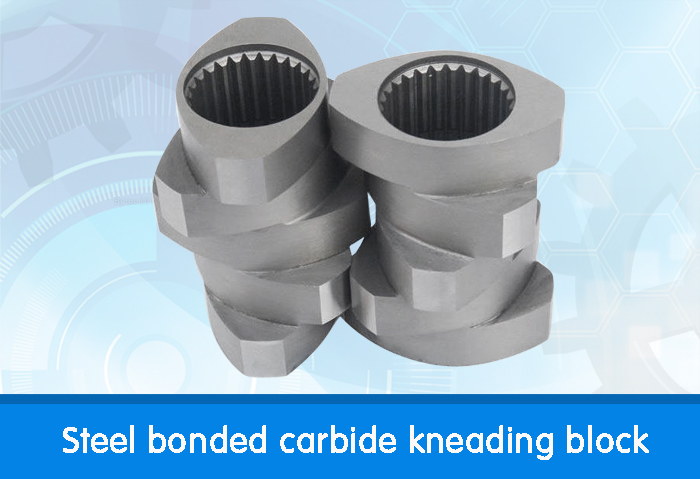

Threaded sleeve are divided into two types: ordinary type and locking type,can be screwed into the metal or non-metallic materials in the threaded hole,to form a high strength, wear resistance,high temperature,seismic,impact resistance,corrosion resistance of the standard M, MJ internal thread,and can disperse the stress,protect the matrix thread, can improve the use of screw hole performance,extend the service life of parts.

Steel bonded carbide threaded sleeve: Widely used for feeding and conveying materials of mechanical equipment parts,chemical, electronics,smelting,ngineering machinery.

As the kneading block of complex surface, processing is extremely difficult,currently the domestic and foreign thread sleeve are made of steel,its hardness and wear resistance can not meet the needs of users;Steel-based carbide thread sleeveas of its high hardness,high wear resistance at the same time have a good overall mechanical properties and by the user's favorite,at present products are exported to the United States,Germany,Italy, Japan,South Korea and other developed countries.Steel bonded carbide threaded sleeve has the characteristics of transmission and stirring,which is widely used in chemical industry, electronics,smelting,engineering machinery and other industries.

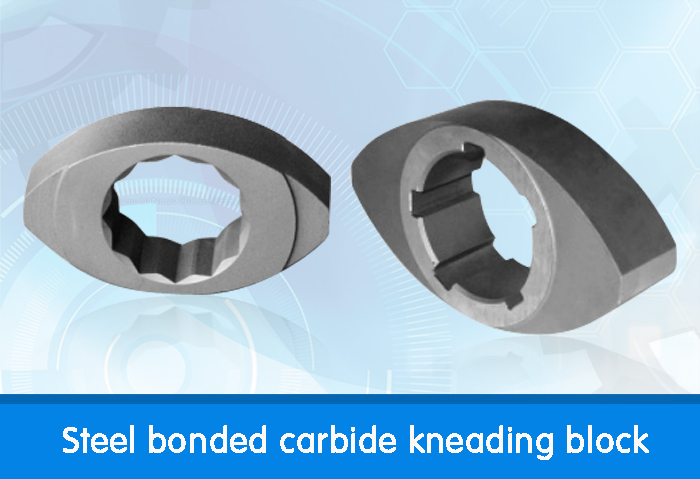

Kneading block is an important part of spline connection,spline shaft and spline sleeve with spline connection,spline connection consists of inner splines and external splines.The inner and outer splines are multi-tooth parts,the splines on the inner cylindrical surface are internal splines, and the splines on the outer cylindrical surface are external splines.

Spline connection according to the different teeth can be divided into rectangular spline and involute spline two categories.

According to the different height of the teeth, the rectangular spline of the tooth size in the standard provisions of the two series,namely,light series and medium series.Light series carrying capacity is low,mostly for static or light load connection; Medium series for medium load.Rectangular spline of the centering way for the small diameter centering, that is,outside the spline and inside the spline of the small path for the mating surface.It is characterized by high precision centering, good stability of the centering, grinding method can be used to eliminate the deformation caused by heat treatment.Rectangular spline connections are the most widely used spline connections.Wide range of applications,such as aero engines,automobiles,gas turbines,machine tools,engineering machinery,tractors,agricultural machinery and general mechanical transmissions,etc.

The involute spline tooth profile is involute,and the indexing circle pressure angle α is 30 ° and 45 °.The height of the teeth is 0.5m and 0.4m (m is the modulus).The involute spline can be machined with the method of making the gear,the process is good,and the manufacturing precision and interchangeability are easy to be obtained.

The orientation of the involute spline is centered.When the load on the radial force,can play a role in automatic centering,is conducive to uniform force of each tooth,high strength,long life.For the larger load,centering accuracy requirements and the larger size of the connection,such as aircraft engines,gas turbines,automobiles and so on.The horn of the 45 ° pressure angle is used for the connection of light loads,small diameters and thin parts.

Product features:

1.Steel bonded carbide kneading block/threaded sleeve with very low coefficient of friction and self-lubricating properties and good resistance to oxidation,corrosion resistance.

2.Steel bonded carbide kneading block/threaded sleeve with high hardness (quenching and tempering hardness up to HRC60 ~ 72), high wear resistance,high impact resistance and good hardenability;The product is dispersed in a large number of refractory metal carbide (titanium carbide), with a high hardness, greatly improving the wear resistance of the product.While it also has the advantages of heat treatment and weldability,with a lower heat treatment deformation rate, a substantial increase in the mechanical properties of the threaded sleeve.

3.Steel bonded carbide kneading block/threaded sleeve with good mechanical processing,can use ordinary mechanical processing equipment and tools for vehicles,milling,planing,drilling,grinding and other ways of processing.

4.Steel bonded carbide kneading block/threaded sleeve has a high elastic modulus and rigidity and excellent damping characteristics, can eliminate itself and even the machine caused by vibration, is a good rigidity of the seismic tools and parts.

5.Steel bonded carbide kneading block/threaded sleeve with malleable.Can change its appearance and size through forging,improve the internal structure of the material,thereby enhancing its performance.

6.Steel bonded carbide kneading block/threaded sleeve has a good impact toughness and excellent cost-effective,compared with tungsten cobalt cemented carbide,steel alloy density is low,6.5g / cm3 or so,have a good price advantage.

The company’s advantage of steel bonded carbide kneading block/ threaded sleeve

The use of self-customized production of high-purity titanium carbide as raw materials, the company's independent research and development of steel bonded carbide kneading block/ threaded sleeve of additive formulations and liquid sintering process technology to ensure that the steel bonded carbide kneading block/ threaded sleeve of fatal,wear-resistant performance, very low coefficient of friction, high self-lubricating properties and better anti-oxidation,corrosion resistance. Product quality and stability, steel bonded carbide kneading block/ internal spline sleeve of production technology in the world's leading level.
