TM60XZ Titanium Carbide Based High Manganese Steel Bonded-Alloy Wear-Resistant Material

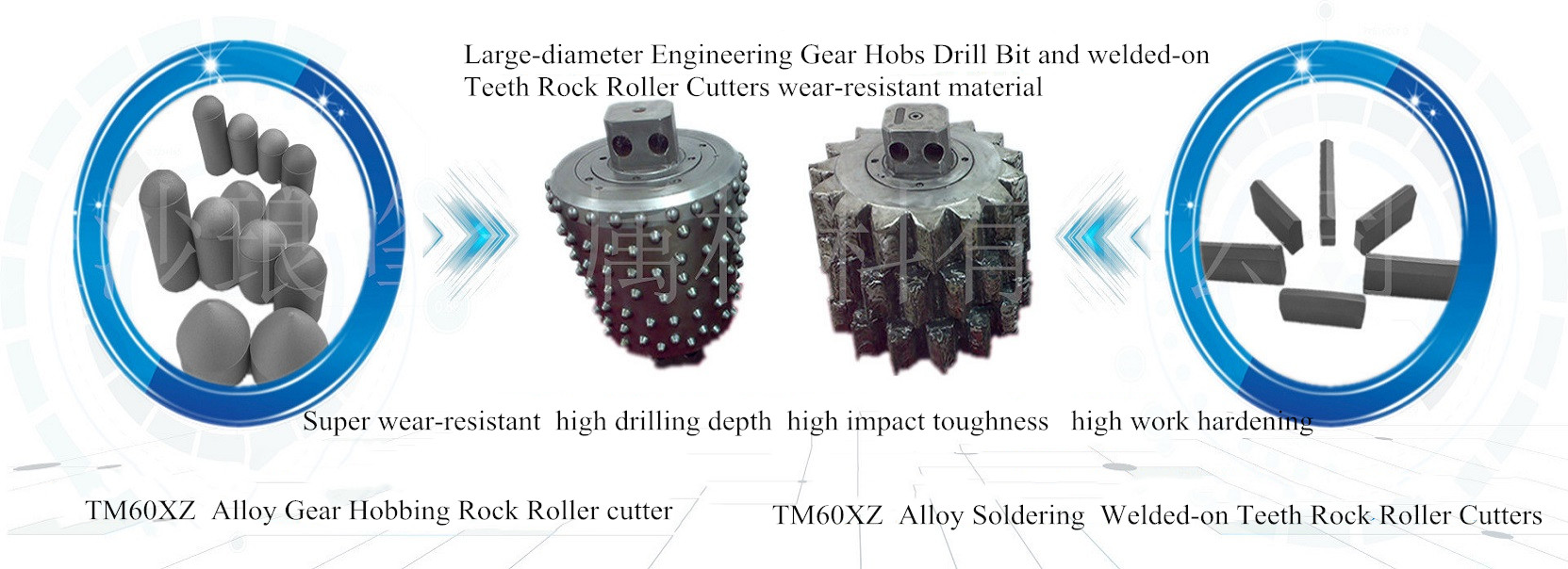

Large-diameter Engineering Gear Hobs Drill Bit and welded-on Teeth Rock Roller Cutters wear-resistant material
Product transaction information:
Price: US$17.85/KG(Price will be double checked before order confirmation.)
Stock Ability: 1500KGs;
Transportation: Air or Sea shipment;
Payment method: Shipment upon the receipt of payment;
MOQ: 5 kg
Lead Time for Customized Size: 7-15 days;
After-Sale Service: Replace the inferior parts unconditionally;
Product core advantages:
1. Standardized production process and process design;
2. Comprehensive enterprise standards;
3. Independent research and development of high-purity raw materials;
4. core technology of formulating high-end material;
5. Provide wear solutions.
Basic product introduction:
TM60XZ Titanium Carbide Based High Manganese Steel Bonded-Alloy with high wear resistance and high toughness, is made of high manganese steel as binder phase, titanium carbide as hard phase. The density is low, 0.8 times that of high manganese steel and 0.42 times that of cemented carbide. The density is low, 0.8 times that of high manganese steel and 0.42 times that of cemented carbide. The welded Rock Roller Cutters made of Titanium Carbide Based High Manganese Steel Bonded-Alloy has a high footage. High-end wear-resistant steel drill bits need to be welded with tungsten carbide to increase their wear resistance, while TM60XZ titanium carbide-based high manganese steel-bonded carbide welding tooth hob drill bits do not need any hard surfacing material.
Features:
TM60XZ Titanium Carbide Based High Manganese Steel Bonded-Alloy is applied to gear hobs drill bit and welded rock roller cutters . As wear resistant material, it has high toughness and high wear resistance. It cannot be processed, but water tough treatment and heat treatment is applicable. It has typical austenite structure, work hardening, excellent welding performance, high impact toughness and high wear resistance. Under the action of large impact load, it has a strong work hardening ability.
Technical Specification:
|
Grade |
TM60XZ |
|
Hardness |
58-60HRC |
|
Bending Strength |
1900N/mm2 |
|
Density |
6.30g/cm3 |
|
Impact Toughness |
10.1 J/cm2 |
Application Scope
For the production of large diameter engineering drill bit, large diameter engineering drilling welded Rock Roller Cutters: the cutter teeth made of TM60XZ Titanium Carbide Based High Manganese Steel Bonded-Alloy are welded on the cast steel hob, to form wedged teeth. The bending and breaking force of the cutter teeth during the rock breaking process is designed to be 20 tons, and the bending resistance of the TM60XZ titanium carbide-based high manganese steel steel bonded carbide material is increased. It can be measured to reach 23 tons, and the bonding strength of the weld seam exceeds the design requirements. If the test pieces made by TM60XZ titanium carbide-based high-manganese steel-bonded carbide material are firmly fixed on the assembled working platform and hammered 10 times with a 12-pound sledgehammer, the weld seam remains intact and the test block is not broken. After long-term and extensive use,with multiple working conditions, it is proved the reliability of the welding teeth and the composite alloy welding teeth did not break.
2.weld-on crusher teeth Rock Roller Cutters made by TM60XZ and by high-end wear-resistant steel: two different single disc cutters are fixed on the hob drill bit cutter with diameter of 3m, to make a comparison test of on-site excavation. The high-end wear-resistant steel Rock Roller Cutters have been completely worn out, while the TM60XZ Rock Roller Cutters remain sharp and can continue to drill.
3.Construction site of a key bridge in the Yangtze River, the pile hole is being drilled, TM60XZ titanium carbide-based high-manganese steel-bonded carbide drilling bit with a diameter of 3m drilled 260 meters in depth in total. The high-end wear-resistant steel drilling bit drilled 40 meters in depth.
4. In the coal sinking construction site, TM60XZ titanium carbide-based high-manganese steel-bonded carbide drilling bit with a diameter of 3m drilled 92.5 meters in depth in total. The high-end wear-resistant steel drilling bit drilled 40 meters in depth.
5, TM60XZ titanium carbide-based high-manganese steel-bonded carbide drilling bit
Can be repaired through hard surfacing, while high-end wear-resistant steel surfacing tungsten carbide drill bit, the cutter disc is scrapped after use.

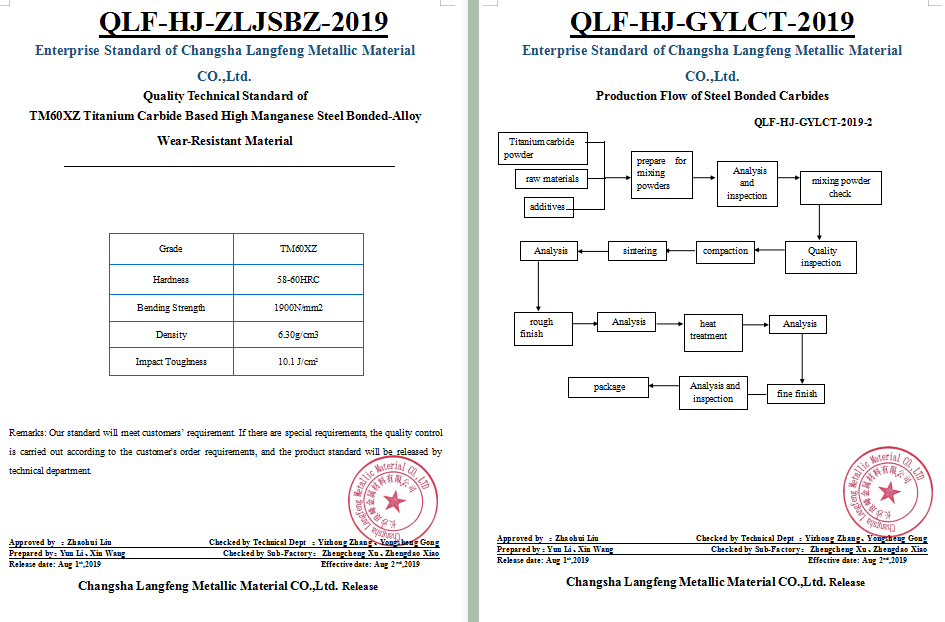

Enterprise Standards - Production Process and Product Quality Technical Standards:
