Steel Bonded Titanium Carbide Guide RollerCurrent Position : Home > Products > Steel Bonded Titanium Carbide Guide Roller > Steel Bonded Titanium Milling Guide Roller
Steel Bonded Titanium Carbide Guide Roller
Description

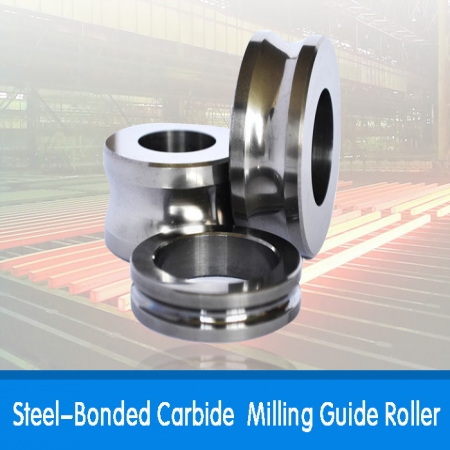

Steel Bonded Titanium Milling Guide Roller



Guild Roller/ Wheel Introduction

Guide roller (guide wheel) is one of spare parts used in stainless steel rods, wires rolling equipment. Roller guides

ensures faster and accurate position during rolling process, to ensure smooth entry into the wheel groove, It is

suitable for the high speed up to 110 m / s, the rotation of guide roller (guide wheel) is 5,0000 rpm , the surface

temperature up to 800-1100 ℃, The design of roller guides for high speed applications, such as in wire rod mills,

requires certain characteristics in order to fulfil the high demands in high speed rolling, it should withstand a certain

physical impact and stress, requires a high acceleration performance. Due to contact with the working material,

the surface is easy to form a metal impurity bonding.





Changsha Langfeng Metallic Material Co.,Ltd.



Steel-bonded carbide high-speed high-precision milling guide roller, also known as guide wheel, is an indispensable

part of the milling equipment, it should fulfill some requirements, including high hardness, high wear resistance,

(it works with high quality bearings to ensure longer service life), good thermal conductivity, with a certain red hardness,

especially high-speed rolling (rolling speed: 80-120m/s). Currently most of guild rollers are made by steels, the large

scale of wires benefit is restricted due to the poor wear resistance, short service life, high frequency of change-out,

while Steel-bonded carbide high-speed high-precision milling guide roller can fully overcome these problems.





Changsha Langfeng Metallic Material Co.,Ltd.



Guild Roller/ Wheel Introduction

Guide roller (guide wheel) is one of spare parts used in stainless steel rods, wires rolling equipment. Roller guides

ensures faster and accurate position during rolling process, to ensure smooth entry into the wheel groove, It is

suitable for the high speed up to 110 m / s, the rotation of guide roller (guide wheel) is 5,0000 rpm , the surface

temperature up to 800-1100 ℃, The design of roller guides for high speed applications, such as in wire rod mills,

requires certain characteristics in order to fulfil the high demands in high speed rolling, it should withstand a certain

physical impact and stress, requires a high acceleration performance. Due to contact with the working material,

the surface is easy to form a metal impurity bonding.



Steel-bonded carbide high-speed high-precision milling guide roller, also known as guide wheel, is an indispensable

part of the milling equipment, it should fulfill some requirements, including high hardness, high wear resistance,

(it works with high quality bearings to ensure longer service life), good thermal conductivity, with a certain red hardness,

especially high-speed rolling (rolling speed: 80-120m/s). Currently most of guild rollers are made by steels,

the large scale of wires benefit is restricted due to the poor wear resistance, short service life, high frequency of change-out,

while Steel-bonded carbide high-speed high-precision milling guide roller can fully overcome these problems.









Characteristics:

1, Steel-bonded carbide high-speed high-precision milling guide roller, with high hardness (hardness up to

HRC60 ~ 72 after quenching and tempering), high wear resistance, high impact resistance and good hardenability;

The product is dispersed in a large number of refractory metal carbide (titanium carbide), greatly improving

the wear resistance.  At the same time it can be heat treated and weldable, with a lower heat treatment

deformation rate, substantially increasing the mechanical properties of the threaded inserts.



2, very low coefficient of friction and self-lubricating properties,  better anti-oxidation, corrosion resistance.



3.high elastic modulus and rigidity and excellent damping characteristics,  it can eliminate the vibration cause by

itself and even by the machine, it is a rigid spare part with good anti-shock performance.



4.With good mechanical performance, it can be processed by use ordinary mechanical processing equipment, including

milling, drilling, grinding, cutting, etc.



5. With Malleability, the appearance and size can be changed through forging, improving the internal structure of the

material, thereby enhancing its performance.



6. with good impact toughness, it is more cost-saving compared with tungsten cobalt cemented carbide:

with low density :6.5g / cm3.





Changsha Langfeng Metallic Material Co.,Ltd.





Advantages:

With the application of self-customized production of titanium carbide with high-purity as raw materials,

with the unique additive formulations and liquid sintering process, the densificiation, excellent wear resistance,

very low coefficient of friction, high self-lubricating properties and better anti-oxidation, corrosion resistance

can be ensured. We are in the leading position of Steel-bonded carbide high-speed high-precision milling

guide roller.







The design of the Steel-bonded carbide high-speed high-precision milling guide rollers offer advantages:
lighter weight;higher wear resistance, it can be used repeatedly after repair;better acceleration performance,

to increase the service life of bearing;heat shock, good toughness, super Long life;free magnetic, difficult to bond with metal;





Technical Data:

Grade

Steel base type

Hard phase

Density G/cm3

Hardness



Strength

Mpa

Porostiy



AnnealingHRC

Quenching

HRA

GT35

Tool steel



TiC

6.5

46

86

1600

A04B00

The above is the typical value



Heat Treatment Technical Data:



 Steel-bonded carbide thread grinding process parameters



Process content



Grinding speed

m/second

Grinding depth

(mm)

Feed rate mm/

Grinding wheel

Name

Grade

Grinding processing



15-25

0.01-0.02

0.01

120mesh -200mesh

Diamond wheel



Product Application Case:



1: steel-based carbide guide roller guide wheel is currently in the United States, Germany, Japan, Singapore,

South Korea has been very good use and validation, used in rolling mill wire rolling process wire derived,

greatly enhance the service life, Comparison of service life See table below:



Name

Processing of materials

Tool material

Working life

ser place

Remark

Guide Roller

High speed wire rod

T10 steel

3set/1 month

South Korea

Working life increased by 10 tims

GT35

1sets/3 months



2:The steel-based carbide guide wheel wheel is also could be used in the metal products industry wire manufacturers, such as wires, cables, wire rope, steel cord, stainless steel screens ,textile, chemical and other industries.





Guide roller guide wheel instructions:

The serive life of Guide roller and guide wheel affected by two items: first the raw material, the second is the bearing life.

Because the bearing and guide roller/ guide wheel showed interference fit, will not be able to remove once assembled.

It is very important that two service life should be match. Currently  in the domestic market, the bearing is medium or

low quality, rarely high quality. In this way, the bearing and steel-bonded carbide guide roller/ guide wheel does not match,

steel-based carbide guide wheel life is much higher than the bearing’s. This is also the main reason why steel-free

carbide guide roller guide wheel is not promoted. The use of foreign high-quality bearings, its life and the steel-based

carbide guide wheel can be a good match, could be used well.



How to improve the service life of the guide roller:

In order to improve the wear resistance and anti-cracking performance of the rolling mill guide roller, the guide roller

/guide wheel in steel-based cemented carbide material with the new powder metallurgy production technology has a

large service life improvement compared with the conventional high chromium cast steel guide roller /guide wheel.

High chromium cast steel guide roller life is generally 8 hours, after the emergence of serious wear groove and fatigue

cracks, wear deep groove will occur sticky steel and steel phenomenon, seriously affecting the surface quality of steel,

thus Scrapped. Steel-based cemented carbide guide carbide guide roller guide wheel has a significant anti-abrasive

wear and thermal fatigue resistance, the average service life of 800 hours; Moreover, the guide roller /guide wheel repair,

the average life expectancy can be improved more, the effect is very significant.

Through the comprehensive evaluation of the guide roller of the steel-bonded cemented carbide material, it can be seen

that the application of the steel-bonded carbide guide roller on the rolling mill can significantly improve the service life ,

such as reduce handling/ loading and unloading costs, reduce the labor intensity of frequent replacement and the waste

of working time caused by the disassembly and handling of the guide rollers, and can increase the amount of rolled steel,

save a lot of high quality steel.
